Toyota 8" & 9.5" 29 Spline Double Drilled Pinion Flange, Fits 1984+ with Nitro Gears, or 2003+ OE

Toyota 29 Spline Double drilled Pinion Flange, Fits 2003+ or 1984+ with Nitro Gears
T8, TV6, T8R, T8S Yoke 29 Spline, Fits All 1984+ 66X66 & 60X60

In 2002, Toyota started using 29 Spline pinion & flange on the 8” & 9.5” differentials. Following Toyotas lead for an upgrade, Nitro Gear & Axle has been upgrading much of their line of Ring & Pinions for Toyota to 29 Spline. This means, if you are fitting the newer 29 Spline Ring & pinion to a 2002 or Older diff, you will need this flange.

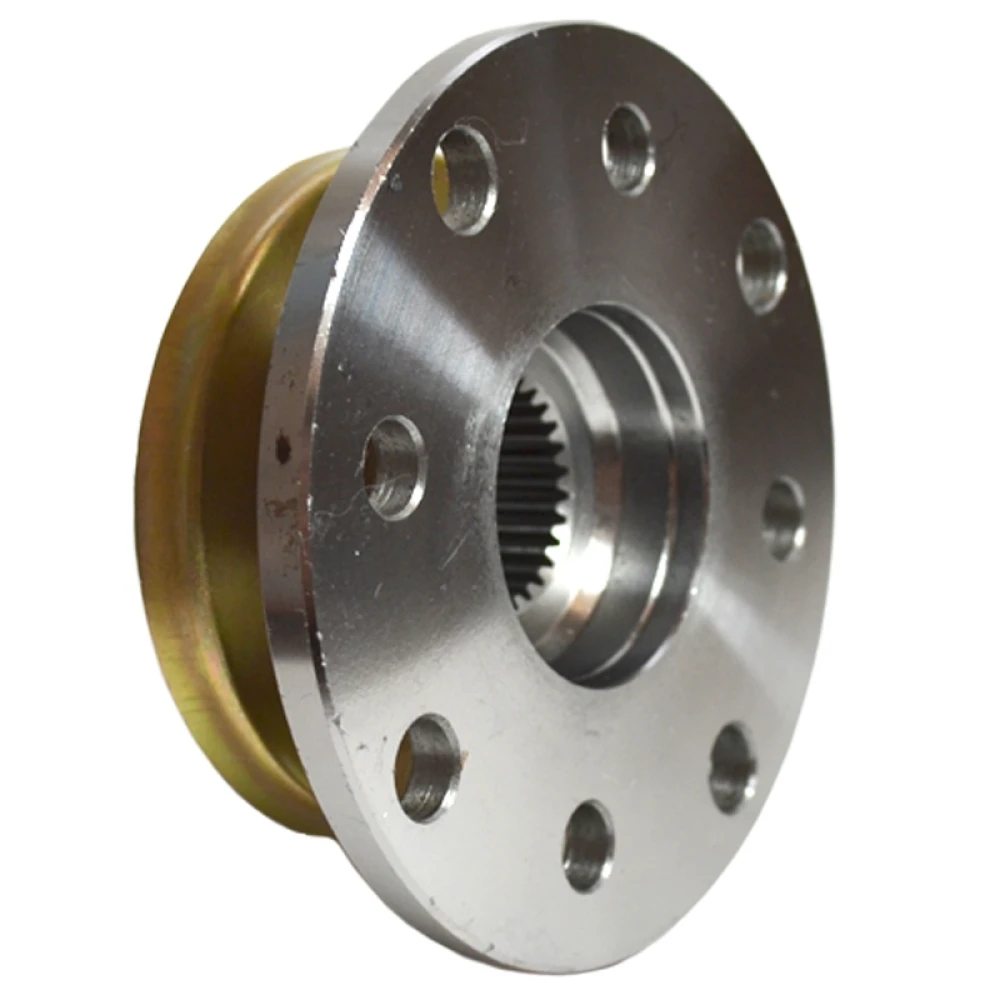

Toyota 8" & 9.5" 29 Spline Pinion Flange
Dual Drilled Bolt Pattern with common 60x60mm & 66x66mm Patterns
Differential: Toyota 8" Rear, 8” Reverse, 8” Clamshell & Land Cruiser 9.5”
Pinion Spline Count: 29
Dual Bolt Patterns: 60mm x 60mm, 66mm x 66mm
Seal Surface: 1.615"/41mm used with TOY90311-41009 Pinion seal
Replaces Toyota OE Part number 41204-35100 & 41204-35110

Applications:
- As a replacement for 2003+ Toyota vehicles with 8” or 9.5” diffs with 29 Spline OEM Ring & Pinions
- Required to fit Nitro 29 Spline 8” or 9.5” Ring & Pinions to 2002 & older vehicles

Features:
Pinion Spline Count: 29
Dual Bolt Patterns: 60mm x 60mm, 66mm x 66mm
Seal Surface: 1.615"/41mm
Replaces Toyota OE Part number 41204-35100 & 41204-35110
Also available as a Kit with flange, nut & seal: YOKTOYFITKIT-29
